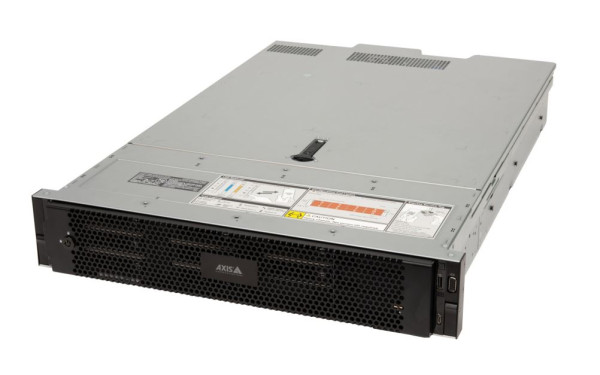

Axis S1148 network video recorder 2U Black,Grey

Code: ART-181609 7331021079229 02539-001

This out-of-the-box, ready-to-use recording server features powerful components for top-class performance. And it’s easy to scale and expand your system as your needs grow. Top class performance and reliability Featuring powerful components, this high-performance recording server offers support for powerful applications and features. Thanks to a RAID controller with high cache memory, it minimizes the risk of recording gaps, downtime, and data loss. This secure device complies with government policies and uses a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. And, if the system crashes, built-in operating system recovery stored on the device ensures data can be quickly recovered. Flexible, scalable solution AXIS S1264 is ideal for demanding applications. With great scalability, it’s easy to expand your system as it grows without the need for additional hardware. It includes 64 AXIS Camera Station licenses. And you can expand your system up to a recording bitrate of 625 Mbit/s (approximately 80 channels). Plus, with multiple RAID configurations (levels 0/1/5/6/10), it provides flexible system storage with easy expansion and redundancy based on your specific requirements. AXIS S1264 is available in three variants with a choice of storage: either 24 TB, 64 TB, or 144 TB. It features a total of 12 hard drive bays so depending on the variant up to 6 additional hard drive bays are available for optional accessories. Quality and ease-of-use This reliable recording server comes preloaded with AXIS Camera Station licenses and pre-configured software, so there’s no need to spend time selecting, configuring, and testing hardware. Plus, with services such as Keep Your Heard Drive and Next Business Day Onsite Support, as well as a 5-year warranty, you can depend on Axis for first-class quality, reliability, and support. Part of an Axis end-to-end solution, all supported products are available in one price list for a one-stop-shop experience. Furthermore, with an intuitive installation wizard and AXIS Recorder Toolbox, AXIS S1264 eliminates installation problems to help ensure every customer installation is trouble-free.

Tech Detail Table Tech Detail Table

AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Backup function	N
Chassis type	Rack (2U)
Depth	482 mm
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Height	87 mm
Installed storage drive type	HDD
Internal memory	24000 GB
Operating relative humidity (H-H)	20 - 80%
Operating system installed	Windows 10 IoT Core
Operating temperature (T-T)	10 - 35 °C
Processor family	Intel Xeon Silver
Processor manufacturer	Intel
Product colour	Grey
RAID levels	0, 1, 5, 6, 10
RAID support	Y
Storage temperature (T-T)	-40 - 65 °C
Supported storage drive types	HDD
Total installed storage capacity	24 TB
Type	Storage server
USB 2.0 ports quantity	2
USB port	Y
VGA (D-Sub) ports quantity	1
Weight	20.8 kg
Width	721.6 mm
