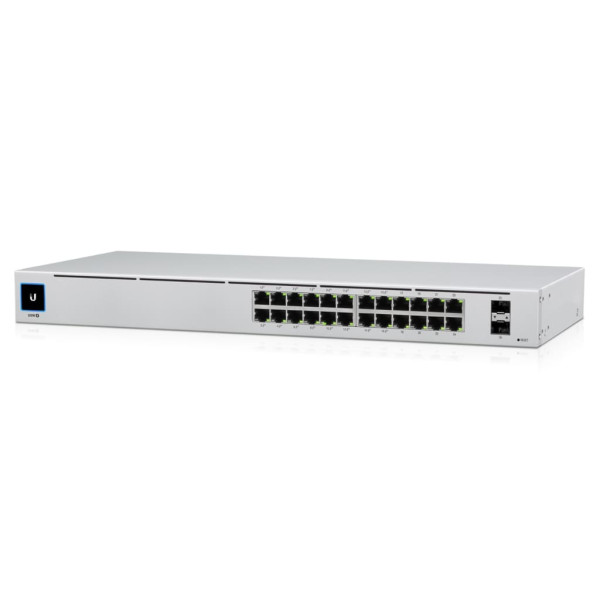

Ubiquiti - USW-24-POE-EU - UniFi 24 Port Layer 2 switch with 16x GbE PoE+, 8x GbE ports, 2x SFP ports, 95W total PoE availability
Code: ART-137162 0817882028554 USW-24-POE-EU
24-Port managed PoE switch with (16) 802.3at PoE+ ports, (8) Gigabit Ethernet ports, and (2) SFP ports. Powerful second-generation UniFi switching. The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Tech Detail Table
Tech Detail Table
| 10G support | N |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, IC |
| Depth | 200 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Height | 43.7 mm |
| Installed SFP modules quantity | 2 |
| Jumbo frames support | Y |
| LED indicators | Activity, Link, PoE, Speed |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Number of power supply units | 1 |
| Operating temperature (T-T) | -5 - 40 °C |
| Power connector | AC-in jack |
| Power consumption (max) | 120 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power supply included | Y |
| Product colour | Grey |
| Quick start guide | Y |
| Rack mounting | Y |
| Security algorithms | 802.1x RADIUS |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 52 Gbit/s |
| Throughput | 26000 Mpps |
| Total Power over Ethernet (PoE) budget | 95 W |
| VLAN support | Y |
| Weight | 3 kg |
| Width | 442.4 mm |
