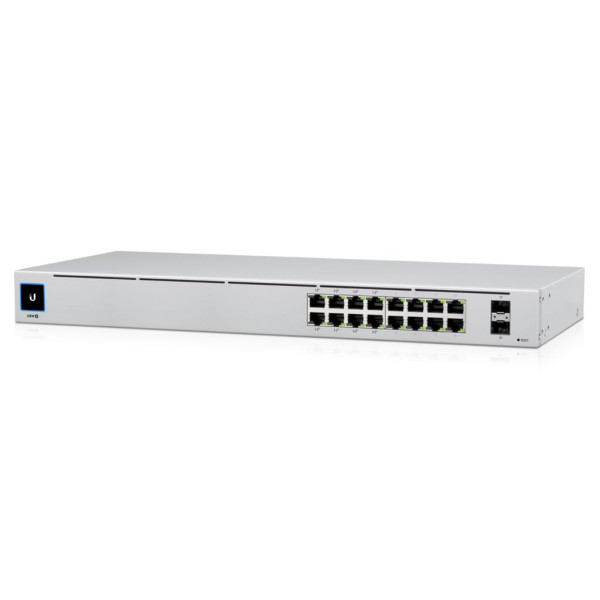

Ubiquiti - USW-16-POE-EU - UniFi 16 Port Layer 2 switch with 8x GbE PoE+, 8x GbE ports, 2x SFP ports, 42W total PoE availability

Code: ART-137161 00817882028547 USW-16-POE-EU

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Tech Detail Table Tech Detail Table

10G support	N
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	CE, FCC, IC
Depth	200 mm
Ethernet LAN data rates	10,100,1000 Mbit/s
Height	43.7 mm
Installed SFP modules quantity	2
Jumbo frames support	Y
LED indicators	Activity, Link, PoE, Speed
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Number of power supply units	1
Operating temperature (T-T)	-5 - 40 °C
Power connector	AC-in jack
Power consumption (max)	60 W
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	32 W
Power supply included	Y
Product colour	Grey
Quick start guide	Y
Rack mounting	Y
Security algorithms	802.1x RADIUS
Switch layer	L2
Switch type	Managed
Switching capacity	36 Gbit/s
Throughput	18000 Mpps
Total Power over Ethernet (PoE) budget	42 W
Weight	2.8 kg
Width	442.4 mm
