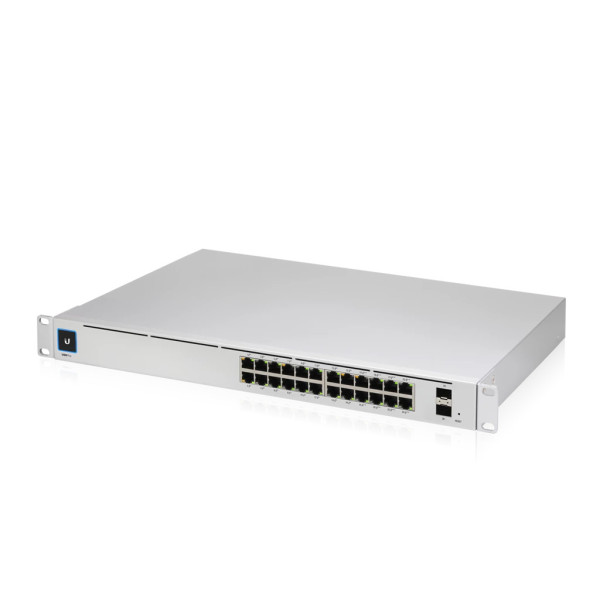

Ubiquiti - USW-Pro-24-POE-EU - UniFi 24 Port Layer 3 switch with 16x GbE PoE+ ports, x8 GbE PoE++ ports, 2x 10G SFP+ ports, 400W total PoE availability
Code: ART-137164 0817882027649 USW-Pro-24-POE-EU
24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Tech Detail Table
Tech Detail Table
| 10G support | Y |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Authentication type | IEEE 802.1x, RADIUS |
| Auto MDI/MDI-X | Y |
| Auto-sensing | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat5 |
| Certification | CE, FCC, IC |
| DC input voltage | 11.5 V |
| Depth | 285.4 mm |
| DHCP features | DHCP server |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Y |
| Form factor | 1U |
| Forwarding rate | 65.472 Mpps |
| Full duplex | Y |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 mm |
| Input current | 2.61 A |
| Installed SFP+ modules quantity | 2 |
| Jumbo frames support | Y |
| LED indicators | Activity, Link, PoE, Speed, System |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of power supply units | 1 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Port mirroring | Y |
| Power connector | AC-in jack |
| Power consumption (max) | 30 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power supply included | Y |
| Product colour | Stainless steel |
| Rack mounting | Y |
| Reset button | Y |
| Spanning tree protocol | Y |
| Static route | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 88 Gbit/s |
| Throughput | 44000 Mpps |
| Total Power over Ethernet (PoE) budget | 400 W |
| VLAN support | Y |
| Weight | 3.5 kg |
| Width | 442.4 mm |
