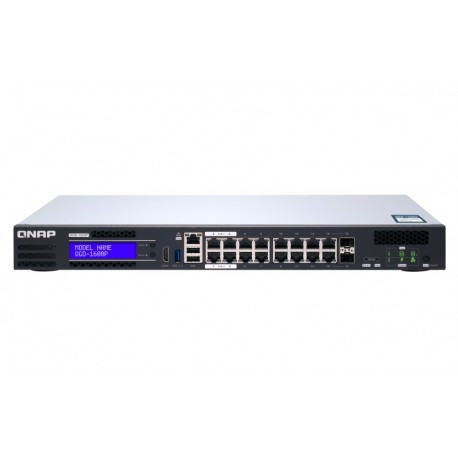

QNAP QGD-1600P Managed Gigabit Ethernet (10/100/1000) Black,Grey Power over Ethernet (PoE)
Code: ART-131134 4713213516119 QGD-1600P-8G
QNAP’s QGD-1600P is the world’s first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.
The QGD-1600P is a hybrid PoE switch/NAS that enables NVR, router, and AP controller functions and comes pre-installed with various software to satisfy all SMB networking requirements. The PoE switch can help your business initiate digital transformation by making edge devices intelligent.
High PoE Capability– up to 60W
The QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. The QGD-1600P can supply a total power budget of 370 watts to meet the demands of many high-power devices (PDs), such as IP cameras, wireless APs, IP phones, LED lights, and digital signage.
Intelligent PoE Functions for Efficient, Centralized PD Management
The QGD-1600P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
Comprehensive Layer 2 Management Features
The QGD-1600P provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. The QGD-1600P also has powerful security functions, including IGMP Snooping, static MAC, QoS, and Wake-on-LAN, which are suitable for simple networking environments and easy deployment.
Dual-system of Switch & NAS, enabling optimum performance
The QGD-1600P features dual-system design, multi-port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.
The First PoE Switch with VM Support
The QGD-1600P is the world’s first PoE switch with the QTS operating system built in for VM, container, and other cloud applications, enabling diverse networking and storage solutions. In addition to QVR Pro, VJBOD, and other diverse storage applications, the QTS App Center also supports VMs for running many open-source software applications, including MikroTik® RouterOS, OpenWrt, pfSense®, and Ubiquiti® UniFi®. Integrated with public cloud services, the QGD-1600P meets the needs of various applications in IP surveillance, storage expansion, network security, and wireless LAN management. The QGD-1600P dual-CPU design enables you to run the networking management interfaces of QSS (QNAP Switch System) and QTS independently. The QGD-1600P offers a user-friendly web interface, QuNetSwitch, to help SMBs easily deploy a flexible and secure IT infrastructure.
QTS and QSS can work independently without interfering each other to ensure continuous operation. For example, when restarting the QTS, the QSS PoE power supply will not be interrupted; when rebooting the QSS, the VMs on QTS will keep running.
The QGD-1600P and QVR Pro
Make a One-Stop IP Surveillance System
The QGD-1600P works seamlessly with QVR Pro, QNAP’s new surveillance software service, to help build the most cost-effective one-stop IP surveillance system. By integrating PoE, NVR, and NAS storage functions, the QGD-1600P significantly simplifies the surveillance network infrastructure while satisfying the requirements for surveillance deployment, central management, video recording and computing. The QGD-1600P offers 4-port 60-watt and 12-port 30-watt Gigabit PoE to different brands of high-power IP Cameras with the ONVIF standard. Through QVR Pro Surveillance Suite, IT administrators can easily manage cameras, record and play back videos, failover recording tasks, and monitor mobile apps. The QGD-1600P is equipped with an HDMI output to connect an external monitor for real-time surveillance video monitoring.
QGD-1600P + VJBOD: A Highly Scalable Storage Solution
The QGD-1600P supports up to two SATA drives and other hardware-based storage expansion accessories, such as PCIe, USB, SAS expansion cards and RAID Expansion Enclosure (TR-004U) to provide reliable performance. Additionally, you can expand the storage space of the QGD-1600P via QNAP VJBOD. VJBOD allows you to instantly allocate storage space from a remote QNAP NAS as an iSCSI LUN and create storage pools, take snapshots, create clones from snapshots, or index multimedia files in the media library on the QGD-1600P. With the expansion availability of physical units and VJBOD, you can attain the highest possible storage utilization to fulfill volume data storage and backup needs.
QGD-1600P: Enhance Security with an Integrated Virtual Router and Virtual Firewall
The QGD-1600P can be easily transformed into a security router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. You can flexibly configure Layer 3 routing functions and create site-to-site VPN tunnels between headquarters and branch offices while securing enterprise network data transmissions. The virtual firewall software pfSense helps enterprises separate or protect local networks and apply multiple security policies.
The QGD-1600P Creates a Wireless AP Controller With UniFi® AP
The QGD-1600P offers 4-port 60-watt and 12-port 30-watt Gigabit PoE for various types of high-power PoE wireless APs. Adopting PoE and VM technology to support PoE wireless APs and the Ubiquiti wireless LAN management software UniFi, the QGD-1600P becomes a hardware-based and software-based wireless AP controller. The QGD-1600P enables not only data transmission and PoE management over wireless APs, but also central management over wired and wireless networking devices in offices, hotels, retail stores, or other small-to-medium-sized networks, greatly promoting the effectiveness of network management and reducing costs.
QuNetSwitch: User-Friendly Switch Management Software
Aside from QNAP Switch System (QSS), the QGD-1600P also offers QuNetSwitch (via QTS), a user-friendly web interface networking management software application to help IT administrators efficiently control Layer 2 management and PoE networks. Additionally, the overview dashboard and graphical statistics analysis area displays all the information about the switch and PDs at a glance, making centralized management of over--powered devices intuitive and easy for administrators.
- QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 370 watts to meet the demands of high-powered devices (PDs)
- QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface
- QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of high-power devices intuitive and easy
- Supports up to two SATA drives
- PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters
- Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications
The QGD-1600P is a hybrid PoE switch/NAS that enables NVR, router, and AP controller functions and comes pre-installed with various software to satisfy all SMB networking requirements. The PoE switch can help your business initiate digital transformation by making edge devices intelligent.
High PoE Capability– up to 60W
The QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. The QGD-1600P can supply a total power budget of 370 watts to meet the demands of many high-power devices (PDs), such as IP cameras, wireless APs, IP phones, LED lights, and digital signage.
Intelligent PoE Functions for Efficient, Centralized PD Management
The QGD-1600P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
Comprehensive Layer 2 Management Features
The QGD-1600P provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. The QGD-1600P also has powerful security functions, including IGMP Snooping, static MAC, QoS, and Wake-on-LAN, which are suitable for simple networking environments and easy deployment.
Dual-system of Switch & NAS, enabling optimum performance
The QGD-1600P features dual-system design, multi-port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.
The First PoE Switch with VM Support
The QGD-1600P is the world’s first PoE switch with the QTS operating system built in for VM, container, and other cloud applications, enabling diverse networking and storage solutions. In addition to QVR Pro, VJBOD, and other diverse storage applications, the QTS App Center also supports VMs for running many open-source software applications, including MikroTik® RouterOS, OpenWrt, pfSense®, and Ubiquiti® UniFi®. Integrated with public cloud services, the QGD-1600P meets the needs of various applications in IP surveillance, storage expansion, network security, and wireless LAN management. The QGD-1600P dual-CPU design enables you to run the networking management interfaces of QSS (QNAP Switch System) and QTS independently. The QGD-1600P offers a user-friendly web interface, QuNetSwitch, to help SMBs easily deploy a flexible and secure IT infrastructure.
QTS and QSS can work independently without interfering each other to ensure continuous operation. For example, when restarting the QTS, the QSS PoE power supply will not be interrupted; when rebooting the QSS, the VMs on QTS will keep running.
The QGD-1600P and QVR Pro
Make a One-Stop IP Surveillance System
The QGD-1600P works seamlessly with QVR Pro, QNAP’s new surveillance software service, to help build the most cost-effective one-stop IP surveillance system. By integrating PoE, NVR, and NAS storage functions, the QGD-1600P significantly simplifies the surveillance network infrastructure while satisfying the requirements for surveillance deployment, central management, video recording and computing. The QGD-1600P offers 4-port 60-watt and 12-port 30-watt Gigabit PoE to different brands of high-power IP Cameras with the ONVIF standard. Through QVR Pro Surveillance Suite, IT administrators can easily manage cameras, record and play back videos, failover recording tasks, and monitor mobile apps. The QGD-1600P is equipped with an HDMI output to connect an external monitor for real-time surveillance video monitoring.
QGD-1600P + VJBOD: A Highly Scalable Storage Solution
The QGD-1600P supports up to two SATA drives and other hardware-based storage expansion accessories, such as PCIe, USB, SAS expansion cards and RAID Expansion Enclosure (TR-004U) to provide reliable performance. Additionally, you can expand the storage space of the QGD-1600P via QNAP VJBOD. VJBOD allows you to instantly allocate storage space from a remote QNAP NAS as an iSCSI LUN and create storage pools, take snapshots, create clones from snapshots, or index multimedia files in the media library on the QGD-1600P. With the expansion availability of physical units and VJBOD, you can attain the highest possible storage utilization to fulfill volume data storage and backup needs.
QGD-1600P: Enhance Security with an Integrated Virtual Router and Virtual Firewall
The QGD-1600P can be easily transformed into a security router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. You can flexibly configure Layer 3 routing functions and create site-to-site VPN tunnels between headquarters and branch offices while securing enterprise network data transmissions. The virtual firewall software pfSense helps enterprises separate or protect local networks and apply multiple security policies.
The QGD-1600P Creates a Wireless AP Controller With UniFi® AP
The QGD-1600P offers 4-port 60-watt and 12-port 30-watt Gigabit PoE for various types of high-power PoE wireless APs. Adopting PoE and VM technology to support PoE wireless APs and the Ubiquiti wireless LAN management software UniFi, the QGD-1600P becomes a hardware-based and software-based wireless AP controller. The QGD-1600P enables not only data transmission and PoE management over wireless APs, but also central management over wired and wireless networking devices in offices, hotels, retail stores, or other small-to-medium-sized networks, greatly promoting the effectiveness of network management and reducing costs.
QuNetSwitch: User-Friendly Switch Management Software
Aside from QNAP Switch System (QSS), the QGD-1600P also offers QuNetSwitch (via QTS), a user-friendly web interface networking management software application to help IT administrators efficiently control Layer 2 management and PoE networks. Additionally, the overview dashboard and graphical statistics analysis area displays all the information about the switch and PDs at a glance, making centralized management of over--powered devices intuitive and easy for administrators.
- QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 370 watts to meet the demands of high-powered devices (PDs)
- QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface
- QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of high-power devices intuitive and easy
- Supports up to two SATA drives
- PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters
- Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications
Tech Detail Table
Tech Detail Table
| 10G support | N |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 14 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | Y |
| Cables included | AC,LAN (RJ-45) |
| Certification | CE, FCC, VCCI, BSMI RCM |
| Combo SFP ports quantity | 2 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 403 mm |
| DHCP features | DHCP client,DHCP server |
| Electromagnetic compatibility | A, UL62368 |
| Fiber ethernet cabling technology | 1000Base-X |
| Flash memory | 4000 MB |
| Flow control support | Y |
| Full duplex | Y |
| HDMI stacking ports | 1 |
| Height | 160 mm |
| IGMP snooping | Y |
| Internal memory | 8192 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Y |
| LED indicators | Activity,Fan fail,Link,PoE,Speed |
| Link aggregation | Y |
| Loop protection | Y |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of fans | 2 fan(s) |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Package weight | 5.56 kg |
| Port mirroring | Y |
| Power consumption (max) | 418 W |
| Power over Ethernet (PoE) | Y |
| Power supply included | Y |
| Processor frequency | 1800 MHz |
| Processor model | Intel Celeron J4115 |
| Product colour | Black,Grey |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mount kit | Y |
| Rack mounting | Y |
| Rate limiting | Y |
| Reset button | Y |
| Security algorithms | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Switch type | Managed |
| Switching capacity | 32 Gbit/s |
| Throughput | 16000 Mpps |
| Total Power over Ethernet (PoE) budget | 370 W |
| Traffic classification | Y |
| USB 2.0 ports quantity | 2 |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 4.41 kg |
| Width | 528 mm |
